Name: IP/POE EXTENDERS

Product Name: Single-Port Long Reach Ethernet over coaxial Extender

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	PDF Download

1.1 Product Introduction

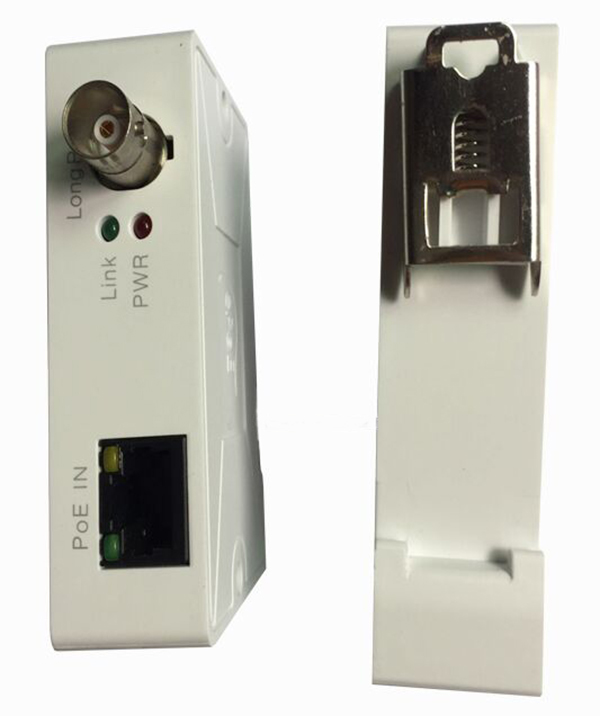

Single-Port Long Reach Ethernet over coaxial Extender is a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port.

The proudct is equipped with two transmission modes which are 100Mbps and 10Mbps. it can bemondified accordign to the transmission distance.

1.2 Product Features

Supports IEEE802.3, IEEE802.3u and IEEE8/02.3X standards.

Supports IEEE802.3af and IEEE802.3 at power supply standards.

Port 1*RJ45 10/ 100Mbps, 1*BNC.

Supports RJ59 coaxial cable: 400m/100Mbps, 1000m/10Mbps.

Supports MDI/MDIX self-adaption.

Supports long range power supply transmission via coaxial cable.

Operating temperature:-30~65℃
