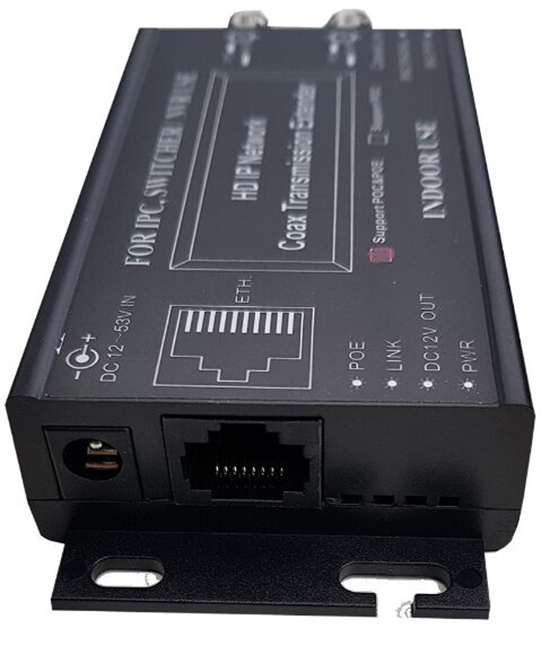

JXIPVE602-POC/POE 2 Channel IP over Coax Video Extender

Suitable for  PoE (15.4W) PoE+ (30W) & High Power PoE (60W)
Ideal for Locating CCTV Cameras requiring PoE power a long distance away

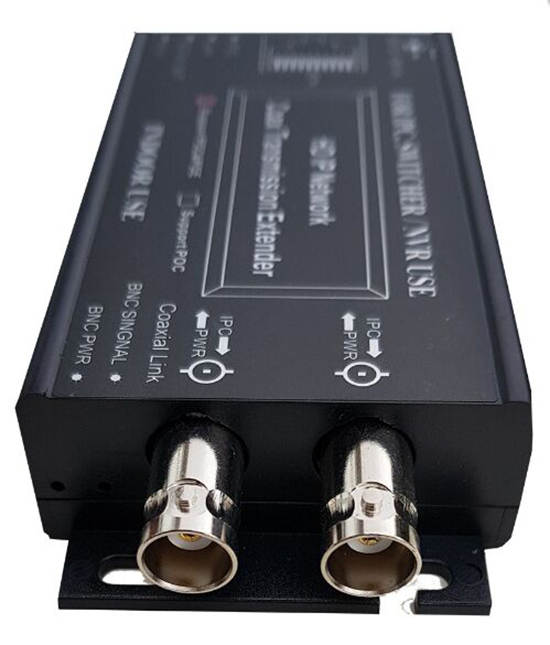

Designed for extending Network Signal & Power over Coax Cable (RG59) to a maximum distance of 2500m (600m with power). The extender has 2 BNC connectors supporting 2 Channels at the same time, each channel supporting @4-6 IP Cameras, with a max of 50watts of power per channel, network max rate of 100Mbps. Widely used in CCTV surveillance for PoE IP Cameras.
Min 2x Units required per setup: 1 to act as a Sender & 1 to act as a Receiver

• Long range Ethernet, POE & PoE+ over Coax Cable RG59
• Transmit 10/100Mbps Full Duplex Ethernet up to 2500m or more
• PoE Power up to 120W - enough for up to 20+ IP cameras (units daisy-chained)
• Supports PoE+(30W) & High PoE(60W) PTZ Cameras e.g 8" Hkvision Darkfighter PTZ Cameras
• Power, Data & Control IP PTZ Cameras long distance using a single Coax cable
• Use standard BNC Connectors and BNC-T's to split off different cameras
• Fully automatic, simple to install and maintenance-free
• Transient Protection, Industrial temperature range, Lightning & Surge Protection
• Advaned 128-bit AES encrypted transmission
• Internal use Only

Some Example Scenarios:

4 IP Cameras
CH1: 4x PoE IP Cameras @6.5watts each OR CH1~Ch2: 2x POE IP Cameras each
8 IP Cameras
CH1: 4x PoE IP Cameras @6.5watts each + CH2 4x PoE IP Cameras @6.5watts each
12 IP Cameras
CH1: 4x IP cameras + CH2: to Extender2
Extender2: CH1~CH2: 4 IP Cameras each channnel
4 IP Cameras and 1 PoE+ PTZ camera
CH1: 4x PoE IP Cameras, CH 2: 1x PoE+ IP PTZ camera @30W
6 IP Cameras and 2 PoE+ PTZ camera
CH1: 4x IP cameras + CH 2: to Extender2
Extender2: CH1: 2 IP Cameras + CH2: 2x PTZ Cameras
Power supplies will be required for PoE transmission (not included)
(i) 24W Power Supply
(i) 120WPower Supply
