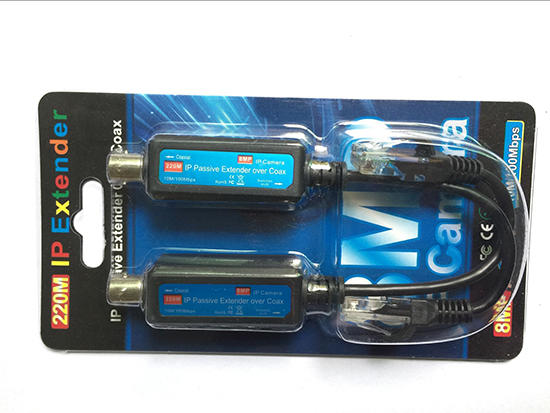

IP Camera Extender over Coax with Surge Protection
upto 220m @10/100Mbps using Coaxial RG59 Cable

8MP (4K) IP Camera compatible
Ideal for upgrading existing analogue CCTV to an IP System

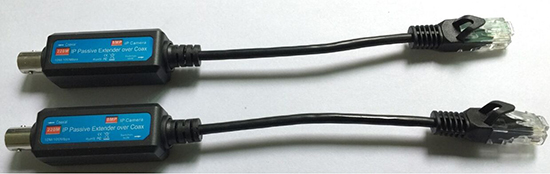

The IP extender is an Ethernet over co-axial video solution. It has a standard RJ-45 network connector one side and a co-axial BNC connector on the other. They are used in pairs and installing them is extremely simple. One unit is connected to each end of the co-axial cable with the BNC connectors thus providing a straight RJ45 to RJ45 network connection from end to end across the existing cabling. This connection instantly operates as a half/full-duplex 100BaseT Ethernet connection and is completely transparent to any network device. The device has no MAC address or IP address and requires no power or set-up whatsoever

The IP Extender turns any analogue video cable into a high-speed network connection. This allows the replacement of analogue cameras with IP cameras without installation of any new cabling, which can save substantial system cost.


Key features:

• Uses legacy analogue video cabling cutting installation costs
• High transfer speed allows megapixel cameras or multiple IP cameras to run across a single co-ax cable connection
• Fully transparent. Will fully support any network device &. non-detectable on the network
• Fast & Easy to install. The device requires no network configuration, has no IP or MAC address
• Can operate at  full speed of 10/100mbps at lengths of 220m
• Supports 8MP (4K) IP Cameras
• Auto adapts. Where cable length, quality or interference prevents full rate operation the device will auto-adapt lowering the total bandwidth as necessary
• Designed to fit inside camera housings and use the camera power supply
• Built in Surge Protection
• High Quality & performance

Applications: IP Video, CCTV, Networking, Transportation, Elevators & mechanisms, Basically anywhere there's Coax!
